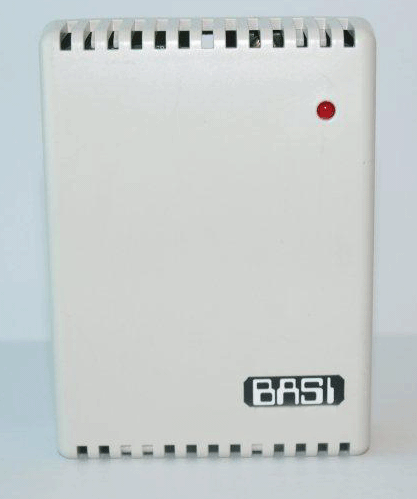

Relative Humidity Transmitter BTHD220R

BTHD220 is using thin-film sensor with capacitance changing proportionally to medium relative humidity, BTHD220 measures RH and temperature of air and non-aggressive gases and converts it into standard 4…20mA or 1-5VDC signal for temperature and humidity and as option RS485 MODBUS RTU communication.

Description

BTHD220 is using thin-film sensor with capacitance changing proportionally to medium relative humidity, BTHD220 measures RH and temperature of air and non-aggressive gases and converts it into standard 4…20mA or 1-5VDC signal for temperature and humidity and as option RS485 MODBUS RTU communication. A built-in temperature drift compensation system guarantees good stability of measurement of both medium relative humidity and temperature. The RH transmitter is factory calibrated and does not need custom adjustment. The device is available in 3 variants All this, in addition to the small size, and the low price, make BTHD220 a convenient solution for many RH measurement applications.

Title Type Size
Data sheet application/pdf 208 KB
