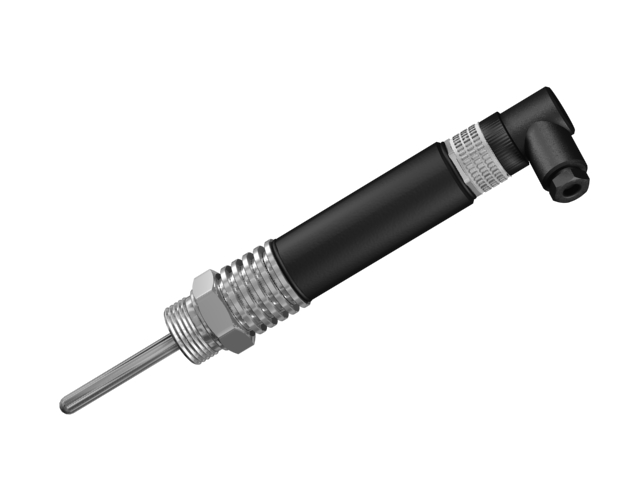

Temperature Transmitter BTT787

BTT787 measures temperature within the -50…200 °C range via a Pt100 sensitive element and converts it into standard 4…20 mA 2-wire signal.

Categories: ,

Description

BTT787 measures temperature within the -50…200 °C range via a Pt100 sensitive element and converts it into standard 4…20 mA 2-wire signal. The configuration software “TraCon” enables programming of the measurement range and output direction as well as other parameters. The probe has a robust vibration-proof stainless steel sheath with IP65 protection class, and its interior is filled with special compound, which protects the electronics from the harsh ambient influences. BTT787 is equipped with a detachable connector that allows fast and easy electrical decoupling. Various stem diameters and lengths as well as stainless steel types are available. Thanks to its robust design and flexible programming, the BTT787 probe is a fast and convenient solution to varying problems involving temperature measurement and conversion in industrial environments.

Title Type Size
Data sheet application/pdf 64 KB

Temperature Transmitter BTT787
