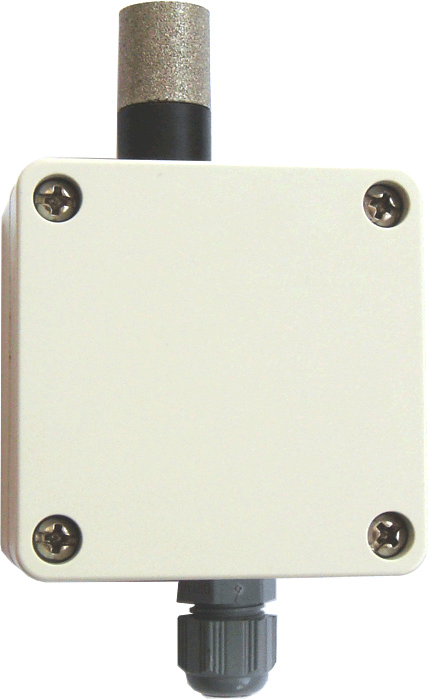

Relative Humidity Transmitter BRHT200

BRHT200 is using thin-film sensor with capacitance changing proportionally to medium relative humidity, BRHT200 measures RH of air and non-aggressive gases and converts it into standard 4…20mA 2-wire signal.

Description

BRHT200 is using thin-film sensor with capacitance changing proportionally to medium relative humidity, BRHT200 measures RH of air and non-aggressive gases and converts it into standard 4…20mA 2-wire signal. A builtin temperature drift compensation system guarantees good stability of measurement and an additional temperature sensor or second 2-wire transmitter may be built-in for measurement of both medium relative humidity and temperature. The RH transmitter is factory calibrated and does not need custom adjustment, while the temperature transmitter can be additionally calibrated on-site. The device is available in 3 variants with different mounting and temperature ranges. All this, in addition to the high protection class, the small size, and the low price,make RHT a convenient solution for many RH measurement applications.

Title Type Size
Data sheet application/pdf 148 KB
