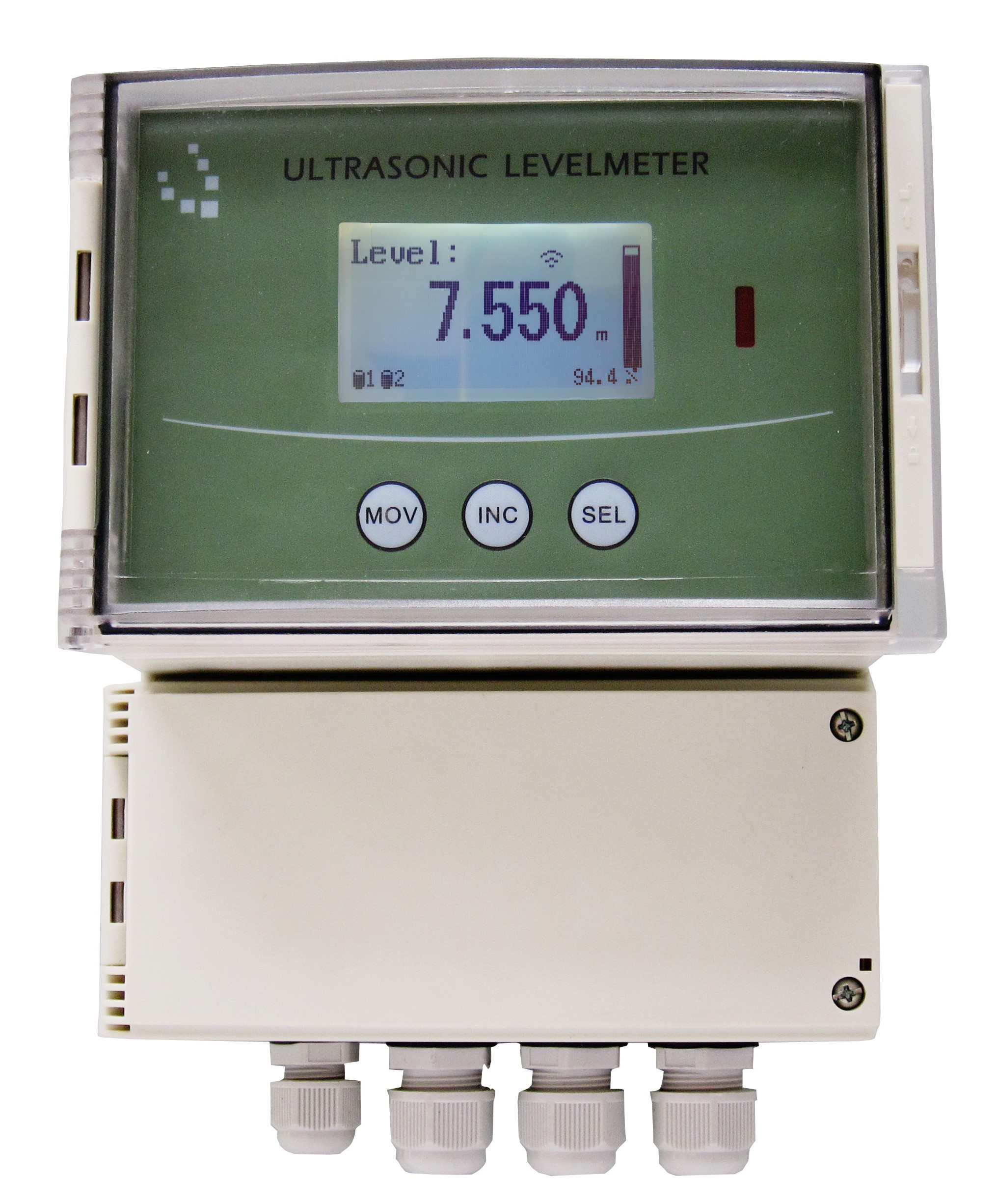

Ultra Sonic Level Meter BULM500

BULM 500 series remote version ultrasonic level meter is fully functional, with optional multiple relays (6 pcs at most) and communication methods, multi-point measurement, which can also be customized according to customer demand the desired function.

Categories: ,

Description

BULM 500 series remote version ultrasonic level meter is fully functional, with optional multiple relays (6 pcs at most) and communication methods, multi-point measurement, which can also be customized according to customer demand the desired function. Can be equipped with easy to operate remote controller.

Remote version ultrasonic level meter is that the level meter’s electronic unit (set parameters, display, the signal output) is separate from the ultrasonic probe, connected by cable each other, the ultrasonic probe is installed in the upper container, the electronic unit (i.e., host) can choose the installation location flexibly, in order to facilitate observation, operation.

  • Separate probes are easy to install, host installation location is flexible and easy to operate.
  • Ultrasonic probe using PVC or PTFE materials for a variety of corrosive conditions, sanitary type is optional.
  • With the patents of Smart echo processing technology to ensure the accuracy and stability.
  • Patented ultrasound probe structure with short blind range, high sensitivity, build-in with full range of automatic temperature compensation.
  • Maximum length allowed for the probe cable 1000m, super anti-electromagnetic interference.
  • 6 relays at most, MODBUS, HART, PROFIBUS-DP protocol, and other functions.
  • Large screen LCD with graphical display.
  • Electric heating probe for cold regions.
  • Can be flexibly customized according to customer demand



Title Type Size
Data sheet application/pdf 384 KB
