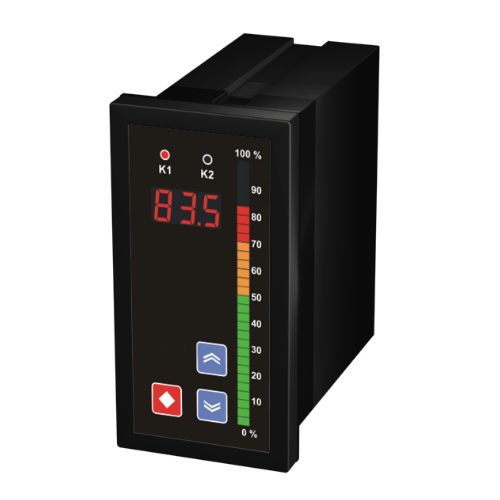

Bar Graph Indicator BBI250

BBI250 is a versatile and non-expensive programmable process indicator and a fully programmable Tri-color LED bargraph in 48x96mm DIN case.

Description

Programmable Bargraph Display
♦ Tri-color fully programmable 30-dot LED bargraph
♦ 3-digit bright LED indication
♦ Universal linear input
♦ Up to 2 alarm relays available with pulsed output
♦ 48×96 mm DIN-sized front panel
♦ Moving dot / bar programmable modes
♦ Custom-design bargraph and scale available

BBI250 is a versatile and non-expensive programmable process indicator and a fully programmable Tri-color LED bargraph in 48x96mm DIN case. It is designed for wide range of display applications with/without relay alarm. Equipped with a bright 3-digit LED display, this model is suitable for measuring and controlling various technological values from -199 to 999 with programmable resolution. The device may be also equipped with up to 2 programmable relays providing ON/OFF control/alarm with or without pulse mode. BBI250 bargraph display allows user programming of every LED dot color, dot/bar display mode as well as customized scale. The unit accepts various linear input voltage or current signals. Display limits, decimal point position, measurement offset value as well as many other parameters are fully programmable. Thanks to its rich display features and excellent price-to-performance ratio, BBI250 can be a very useful and widely applicable device.

Title Type Size
Data Sheet application/pdf 173 KB
Manual application/pdf 462 KB
