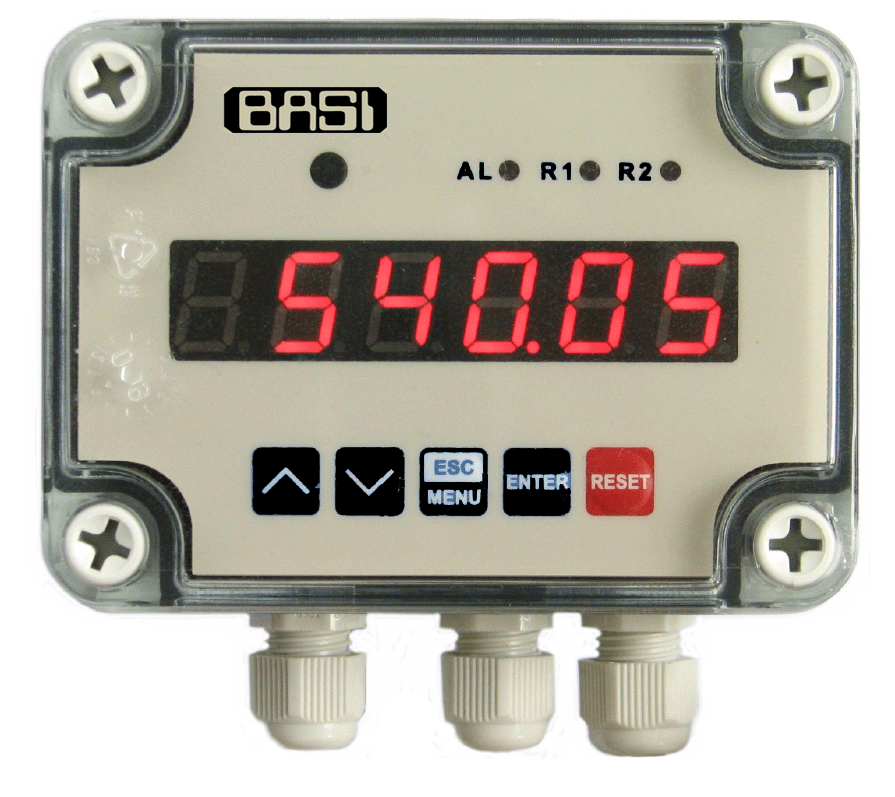

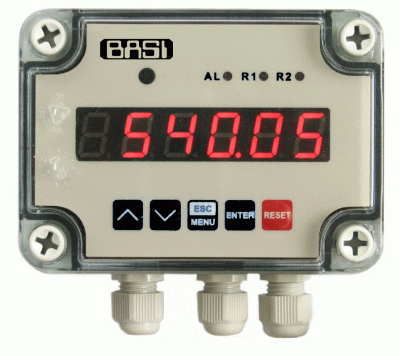

Field Counter BDC118

The universal, wall mounted IP65 programmable counter BDC118 is equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature).

Categories: ,

Description

The universal, wall mounted IP65 programmable counter BDC118 is equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing. The BDC118 counter features an independent reset input. It has 2 relay (or OC) outputs with programmable thresholds, which can be used to control external equipment. Build in RS-485 communication interface enables controlling of all settings by host, and allows use of unit in advanced network systems. Typical applications- universal counting input (quadrature, pulse),- digital debouncingfilter,- programmable multiplier, divider, offset and decimal point position,- 4 counter reset sources (manual, ext, auto, modbus),- programmable relays operation mode (over and under setpoint),- relays (or OC) operation time programmable to 99 min.,- ACCESS option for easy threshold modification,- available with AC and DC power supply versions.

Title Type Size
Data sheet application/pdf 162 KB

Field Counter BDC118
