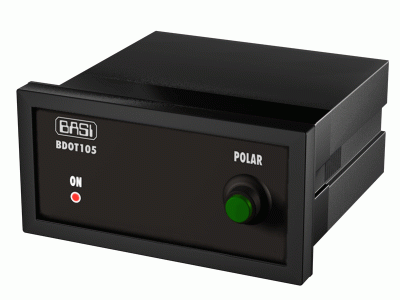

DO2 transmitter BDOT105

BDOT105 is an panel mount electronic transmitter for dissolved oxygen measurement.

Categories: ,

Description

BDOT105 is an panel mount electronic transmitter for dissolved oxygen measurement. It converts the signal from a standard probe for dissolved O2 made by INGOLD or compatible. The transmitter provides the polarization voltage necessary for probe operation and performs the measurement temperature compensation using the signal from the built-in thermistor. The output is a standard voltage or current signal allowing connection of any standard control, data logging, or indication device. An optional digital display may be fitted for indication of measured dissolved oxygen value in % and a keyboard for indication calibration. BDOT105 has a built-in rechargeable battery for constant maintaining of probe polarization even when power supply is absent. A front panel switch may turn off the polarization voltage. The transducers of dissolved oxygen BDOT105 are used when dissolved oxygen has to be measured by standard (low-cost) indicators, data loggers, and controllers. The fields of application include biotechnological, chemical, food, etc. industries, and research.

Title Type Size
Data Sheet application/pdf 111 KB
