Ultrasonic Flow Meter BFM660

The BUFM660 series is a remote version ultrasonic open channel flow meters (O.C.M.). It consists of two elements, a wall mounted host, which has a display and an integral keypad for programming

Categories: ,

Description

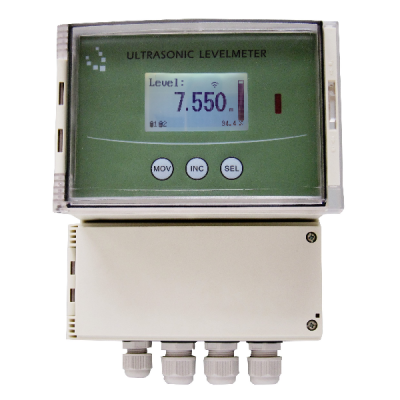

The BUFM660 series is a remote version ultrasonic open channel flow meters (O.C.M.). It consists of two elements, a wall mounted host, which has a display and an integral keypad for programming, and a probe, which must be mounted directly above the surface to be monitored. Both of the host and the probe are plastic leak-proof structure. The BUFM660 series OCM can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.
1.2 Features BUFM660 series O.C.M. is capable of the following functions: High detection accuracy, the flow meter measurement changes with 1mm, the accuracy of change in level is 1 mm; Suitable for a variety of weirs and flumes, Parshall flumes (ISO), Right-angle triangle weir, Rectangular weir; Displays flow rate in L/S or M3

 Excellent anti-interference capability;
 Clear display with enhanced 14 digit two line backlit LCD;
 The cable length between probe and host up to 1000m;
 The probe with leak-proof structure and IP68 protect grade;
 Chemically resistant probe materials for maximum application flexibility;
 Provided 4-20mA output and RS485 serial communication MODBUS
 Provided programmable 6 relays at most for alarms;
 Three button for programming or remote control

Title Type Size
Manual application/pdf 1 MB
