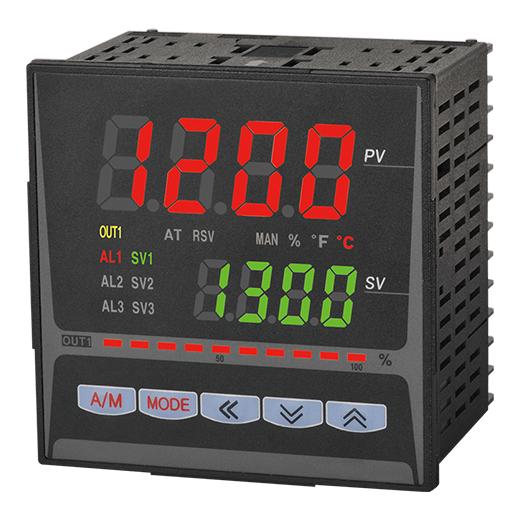

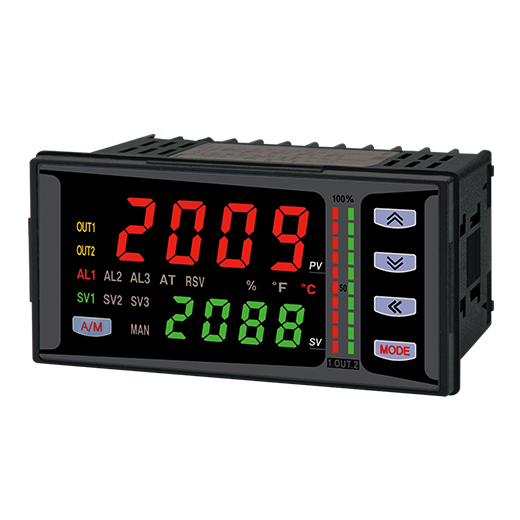

PID Controller BKPN

High speed, high accuracy digital process controllers BKPN Series feature super high-speed sampling speed of 50 ms and high display accuracy of ±0.3%. The controllers provide large, high luminance LED displays with bar graph display of control output value (MV). The series also feature high performance control with heating/cooling control and automatic/manual control functions.

Description

Super high-speed sampling cycle and high display accuracy
: 50 ms sampling cycle and ±0.3% display accuracy
Large display with high luminance LED provides excellent readability
Bar graph display of control output value (MV)
High performace control (independent control outputs for heating and cooling control, automatic/manual control mode)
Parameter configuration through PCs (via USB or RS485 commmunication)
: Comprehensive device management program (DAQMaster) provided
※ Communication converters are sold separately:
: SCM-US48I (USB to RS485 converter), SCM-38I (RS232C to RS485 converter), SCM-US (USB to Serial converter)
Choose between SSR drive output or current output
Heater disconnection alarm function (CT input)
※ CT (current transformer), sold separately: CSTC-E80LN, CSTC-E200LN
Multi-SV function: configure up to 4 preset SV (by digital input terminal)
Compact, space-saving design (rear length: 60 mm)
Terminal cover, sold separately: R⃞A-COVER

Multiple input types and input range
