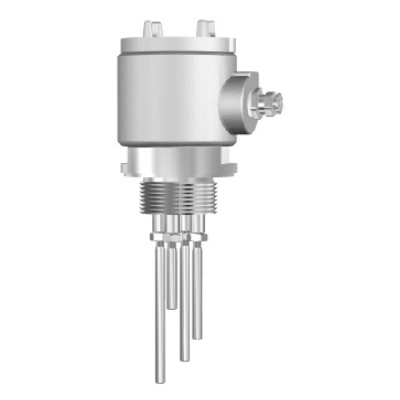

Level Switch BLCSA6

The BLCSA6 level probe is intended for multi-point control of conductive liquids in combination with conductivity level controllers/indicators.

Description

The BLCSA6 level probe is intended for multi-point control of conductive liquids in combination with conductivity level controllers/indicators. The probe consists of main stainless steel body and four replaceable rod-type electrodes (four operating or three operating and one reference). The wetted parts are made of (PTFE insulated) stainless steel allowing usage in food, pharmaceutical, and chemical industries. BLCSA6 sensors can be mounted on the top of various vessels: metal or nonmetal, open-surface, closed, or pressurized up to 16 Bar. The EEx d – approved aluminum enclosure provides a high grade of protection. Thanks to their compact design, BLCSA6 sensors are very useful in multi-level control applications.

Title Type Size
Data sheet application/pdf 398 KB
