Level Switch BLCSF

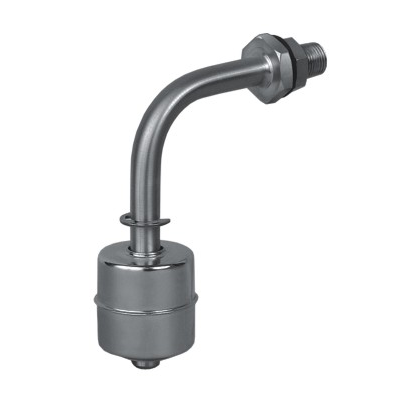

The operation of the BASI’s level probe BLCSF is based on the switching of a reed switch by a magnetic float, moving alongside a protective tube.

Description

The operation of the BASI’s level probe BLCSF is based on the switching of a reed switch by a magnetic float, moving alongside a protective tube. Large variety of versions based on different floats is available. The float can be made of stainless steel or plastic; floats with various dimensions and specific gravity are available for use with different liquid density (down to 0.7 g/cm3) and liquid temperature up to 135 °C. Cable wiring is available with various insulations and lengths. The BLCSF switch is available in variants designed for inside vessel mounting and in a special submersible variant with additional weight and forced cable insulation.

Title Type Size
Data sheet application/pdf 338 KB

Level Switch BLCSF
