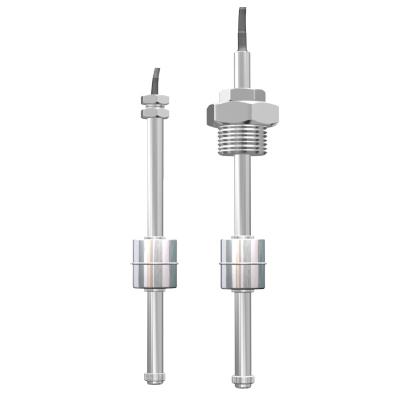

Level Switch BLCSFC

The operation of the BASI’s level probe BLCSFC is based on the switching of reed switches by a magnetic float, moving alongside a protective tube.

Description

The operation of the BASI’s level probe BLCSFC is based on the switching of reed switches by a magnetic float, moving alongside a protective tube. Large variety of versions based on different floats is available. The float can be made of stainless steel or plastic; floats with various dimensions and specific gravity are available for use with liquid density down to 0.7 g/cm3 and temperature up to 135 °C. Up to 4 switching points can be mounted in a single probe, and the reed switches are capable of switching directly different loads. Cable wiring is available with various insulations and lengths depending on the application requirements. Various process connections for inside or outside mounting are available as well as an option for vertical adjustment.

Title Type Size
Data sheet application/pdf 485 KB
