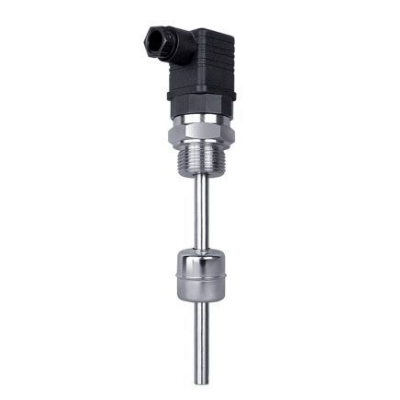

Level Switch BLCSFK

The operation of the BASI ‘s level probe BLCSFK is based on the switching of reed switches by a magnetic float, moving alongside a protective tube.

Description

The operation of the BASI ‘s level probe BLCSFK is based on the switching of reed switches by a magnetic float, moving alongside a protective tube. Large variety of versions based on different floats is available. The float can be made of stainless steel or plastic; floats with different dimensions and specific gravity are available for liquid density down to 0.7 g/cm3, temperature up to 135 °C, and pressure up to 50 bar. Maximum 4 switching points can be mounted in a single probe, and the reed switches are capable of switching directly different loads. The wiring is attained with convenient detachable DIN connector. Various process connections are available as well as an optional vertical adjustment. Moreover, BLCSFK can be equipped with a built-in thermostat with actuation point within 40…130 °C, which additionally expands the probe application area.

Title Type Size
Data Sheet application/pdf 447 KB
