Field Indicator BLD457-S

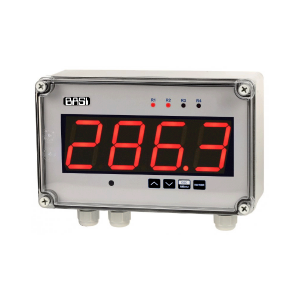

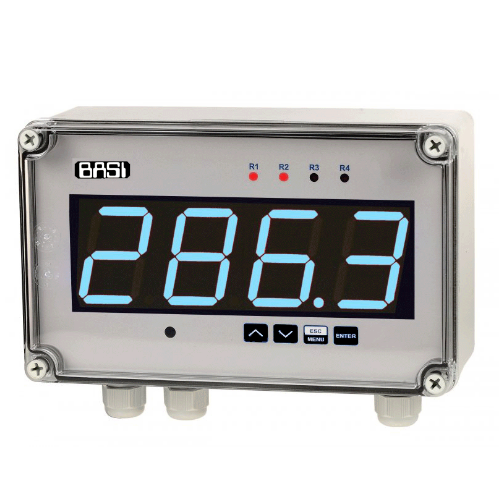

Indicator in wall-mounted case IP 67, with large, readable 57-mm LED display (ultra bright red, green and blue as well as multicolour LED’s), intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 link. The displayed value may be collected from other device (in MASTER mode).

Description

BCD / RS-485

The transmission of analogue signals may involve the inclusion of some errors when measurements are transmitted to other appliances, for example. For this reason, we have supplemented our range with equipment using digital transmission formats. This method enables the connection of large-size meters that can display identical values as those fitted to a control unit. The software developed for these RS-type meters enables their use as general-purpose meters for any digital quantities (including mnemonic messages). Such meters, when combined into complex networks using the ModBus system, can display information transmitted from the master PC of the PLC controller. Indicator in wall-mounted case IP 67, with large, readable 57-mm LED display (ultra bright red, green and blue as well as multicolour LED’s), intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 link. The displayed value may be collected from other device (in MASTER mode).

Parameters

Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Power consumption for 19V ÷ 50V DC: max. 13,5 W; for 16V ÷ 35V AC: max. 19,5 VA; for 85 ÷ 260V AC/DC: max. 21 VA
Additional supply 24V DC +5%, -10% / max. 100 mA, stabilized
Case material ABS + polycarbonate (standard); 100% polycarbonate (on request)
Protection class IP 67
Operating temperature 0°C ÷ +50°C (standard), -20°C ÷ +50°C (option)

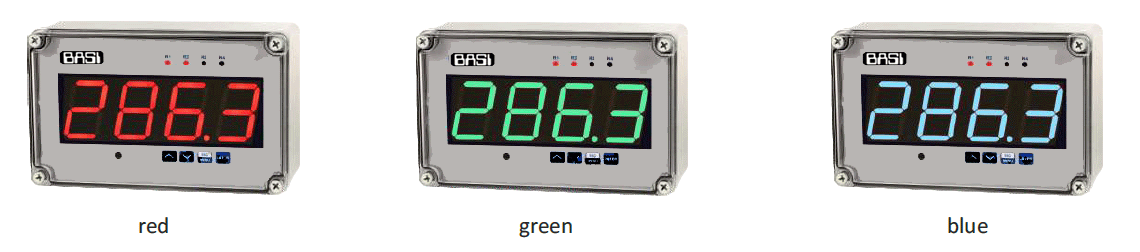

Display LED, 4 x 57 mm, ultra bright (red, green, blue) or multicolour with 9-step adjustment of colours and 8-step adjustment of brighness (according to order)
Communication interface RS-485 (Modbus RTU), not galvanically isolated
Displayed values range 4 digits (-999 ÷ 9999 plus decimal point) or any of character indication in range of 7-segments display
Transmission parameters 1200 ÷ 115200 bit/s; 8N1 and 8N2
Storage temperature -10°C ÷ +70°C (standard), -20°C ÷ +70°C (depending on option)
Case wall-mounted
Case dimensions 230 x 140 x 96,5 mm
