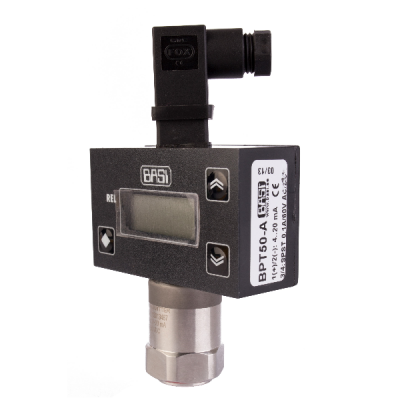

Pressure Transmitter BPT50-A

The BPT50A pressure transmitter is a combination of a thin-film pressure sensor type BPT50 and a programmable loop-powered indicator.

Description

The BPT50A pressure transmitter is a combination of a thin-film pressure sensor type BPT50 and a programmable loop-powered indicator. A 4-digit LCD display allows visualization of the measured pressure from -1999 to 9999 units with resolution of up to 6000 points and user programmable display scalelimits very useful when different pressure engineering units are used. BPT50-A is also equipped with programmable pressure alarms (with or without pulse mode) driving a low-power electronic relay output which can also be used to activate various electric actuators for ON/OFF pressure control. The display limits, decimal point position, measurement offset value as well as many other parameters are fully programmable via a front panel keyboard. Thanks to its excellent price-to-performance ratio as well as its compact design and optional serial interface, BPT50-A is a widely applicable device in low-budget pressure measuring and control applications

Title Type Size
Data sheet application/pdf 198 KB
Manual application/pdf 454 KB
Drawing application/pdf 117 KB
