Weighing Transmitter BWT94

BWT94 is designed to provide weighing and control functions for industrial process systems.

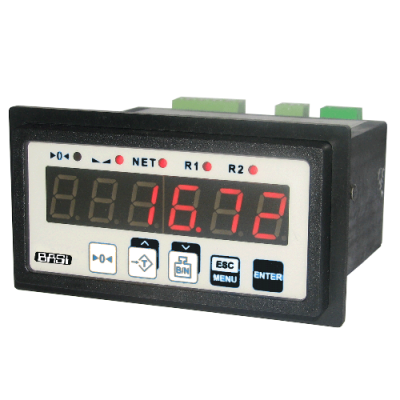

The BWT-94 weight meter is designed for operations with load cells (strain gages) in simple industrial applications not requiring legal metrology approval. The meter is equipped with operating pushbuttons which allow tare weight setting, zero setting for empty balance and displaying of gross and net weight values. The readouts of the measured mass are presented on a 6-digit LED display. The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values. The meter’s software allows performing two calibration methods: data sheet calibration or dead weight calibration. Moreover, the meter can be additionally equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output. The meter can be configured with the local keyboard or via the RS-485 communication port.


Inputs measurement input: tensometer load cells 4-wire or 6-wire; programmable sensitivity selectable up to 2 mV/V or 4 mV/V; load cells power supply: 4,6 V ± 10%, Imax ~ 60 mA; connections: max. 4 load cells 350 Ohm; Programmable digital input: separated, low level 0V ÷ 1V; high level 10V ÷ 30V (about 5.5 mA @ 24V)
Power consumption for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA; 19V ÷ 50V DC power supply: max. 4,5 W
Outputs 2 x REL Imax=1A, Umax=30V DC/250V AC (cos fi=1) or 2 x OC Imax=30 mA, Umax=30V DC, Pmax=100 mW; transducer power supply: 24 V DC + 5% -10% / max 100 mA
Case material NORYL-GFN2S E1
Protection class IP 65 (front side), IP 65 frame for panel cut-out sealing in standard; IP 20 (case and connection clips)
Operating temperature 0°C ÷ +50°C (standard), -20°C ÷ +50°C (option)
Display LED, 6 x 13 mm, red (green – on request), brightness adjustable in 8 steps
Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Analogue outputs (available with 2 x REL or OC, see ordering): active current: operating range 0/4-20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit passive current: isolated, operating range 4-20 mA (max. 2,8-24 mA), load resistance 600 Ω@24VDC, resolution 13 bit; active voltage: operating range 0/1-5V, 0/2-10V (max. 0-11V), load resistance min. 2000 Ω, resolution 13 bit
Communication interface RS-485, 8N1 and 8N2, 1200 ÷ 115200 bit/s, Modbus RTU
Resolution 10 000 d
Storage temperature -10°C ÷ +70°C (standard), -20°C ÷ +70°C (option)
Case dimensions 96 x 48 x 100 mm
Panel cut-out dimensions 90,5 x 43 mm
Mounting panel
Accessories SP-4 or SP-6: load cell junction box
Title Type Size
Data sheet application/pdf 286 KB
