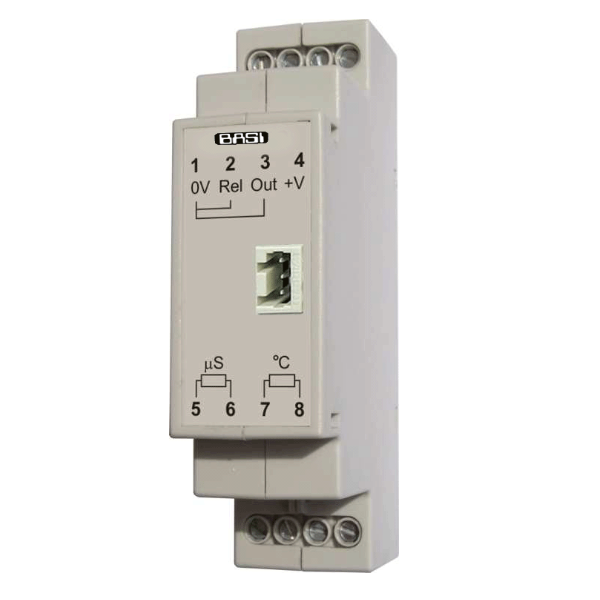

Conductivity Transmitter BCOT751

The BCOT751 is a reliable isolated conductivity transmitter enclosed in a small DIN-rail mounting housing especially designed for, industrial and see water applications.

Description

The BCOT751 is a reliable isolated conductivity transmitter enclosed in a small DIN-rail mounting housing especially designed for, industrial and see water applications. It is well suited with BASI conductivity probes series BCSK as well as other 2-electrode conductivity cells within conductivity range from 01 )uS to 100 mS. BCOT751 provides linear current or voltage output and relay alarm/control output as well. The device is equipped with additional Pt1000 input for automatic temperature compensation. All the transmitter/controller parameters are userprogrammable via RS232 interface and free configuration software. They include: preset conductive ranges, analog output range and direction, relay set-point and hysteresis and direction, temperature compensation parameters, etc. Due to its wide range, flexibility, programmability and reliability, BCOT751 transmitter is very suitable for water treatment and processing applications in food, pharmaceutical and many other industries.

Title Type Size
BCOT751-C application/pdf 490 KB
BCOT751_basi.OM-EN_v1-1 application/pdf 274 KB
