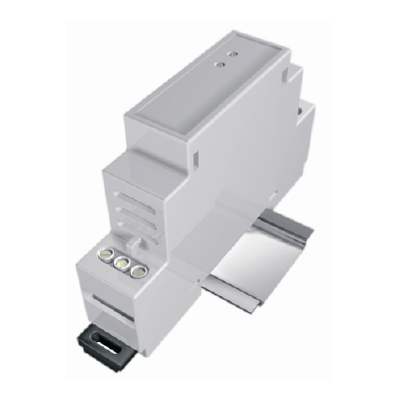

Signal Isolator BLPI732

BASI’s signal isolator BLPI732 is a compact 2-wire current-to-current transmitter providing optical isolation of 3750 VAC between the input and output current loops.

Description

BASI’s signal isolator BLPI732 is a compact 2-wire current-to-current transmitter providing optical isolation of 3750 VAC between the input and output current loops. BLPI732 is available in 2 variants:

– passive: an entirely passive device, which does not generate any supply voltages and does not need any additional supply to operate; the input part is powered by the input current loop (4…20 mA), and the output part is powered by the output current loop;

– active: uses the energy of the output loop power supply (3-wire connection) to generate an isolated supply voltage for the input loop; provides an increased input over-voltage and over-current protection.

BLPI732 is designed for mounting on a 35 mm DIN rail according to EN 50022, but it can also be enclosed in an IP65 protection box for wall mounting.
