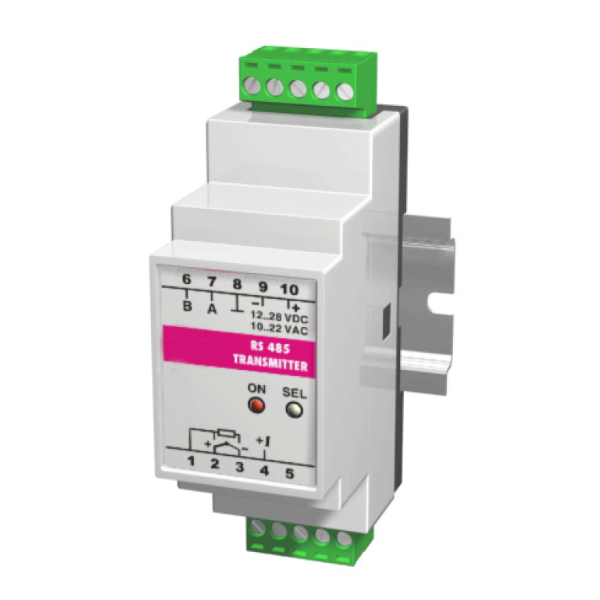

Universal RS485 Transmitter BTT781

BTT781 is an intelligent rail-mountable transmitter with universal input and RS485 output, specially designed for multi-point process measurement and data acquisition in a network with up to 32 devices

Description

BTT781 is an intelligent rail-mountable transmitter with universal input and RS485 output, specially designed for multi-point process measurement and data acquisition in a network with up to 32 devices. This transmitter allows the user to:

  • Select sensor and input signal type (4 RTD types, 6 thermocouples, and 4 linear signals);
  • Select and adjust input range;
  • Perform offset correction and device calibration;
  • Select decimal point position and measurement unit; Adjust the digital filter

A network of up to 32 transmitters can be configured and monitored by using the universal BASI data-acquisition program “PolyMonitor”. Thanks to its isolated universal input, networking capabilities, and low price, BTT781 is particularly suitable for multi-point data acquisition applications..

Title Type Size
Data Sheet application/pdf 203 KB

Universal RS485 Transmitter BTT781
