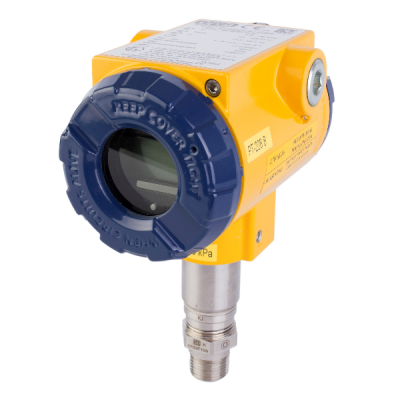

Pressure Transmitter BPT3251

BASI Model BPT3251 Smart pressure transmitters are applicable to the measurement of the pressure, underpressure and absolute pressure of gases, vapours and liquids.

Description

BASI Model BPT3251 smart pressure transmitters are applicable to the measurement of the pressure, underpressure and absolute pressure of gases, vapours and liquids. The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type of manometric liquid. The casing is made of aluminium alloy cast or 316SS stainless steel, degree of protection IP66/IP67. The design of the casing enables the use of a local display, rotation of the display by 90°, rotation of the casing by 0–355° relative to the sensor, and a choice of cable direction. SIL 2, Marine DNV, BV and IECEx, ATEX Exi and Exd aproval and 5 years warranty.

Title Type Size
Data sheet application/pdf 2 MB
Manual application/pdf 10 MB
