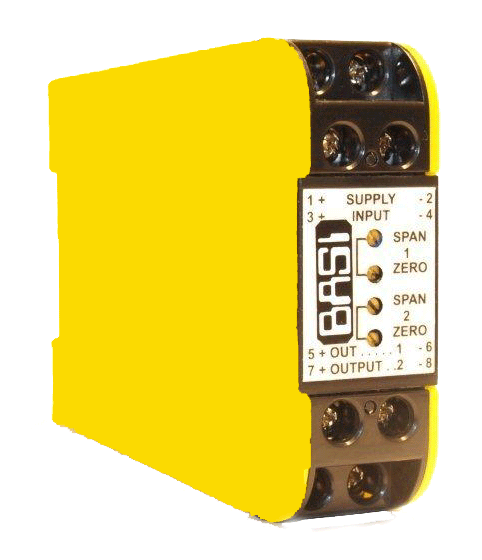

Signal Isolator 5KV BHVI237

The 5KV Isolator BHVI237 is an isolating converter providing true 3-way galvanic isolation up to 5kV r.m.s.

Description

The 5KV Isolator BHVI237 is an isolating converter providing true 3-way galvanic isolation up to 5kV r.m.s. The BHVI237 produces two unipolar output signals from one input signal (no isolation between outputs). The high input output isolation makes the unit suitable for monitoring DC power supplies used in transport and mining machinery. Final calibration is trimmed using the front accessible zero and span 15-turn trim adjustments. Maximum current drive is 20mA and maximum voltage drive is 16V. All units are fitted with a 500mS filter that can be changed on request. The unit is powered from a wide range auxiliary supply (10-60Vdc/16- 48Vac or 80–300Vdc/80-280Vac) through a removable side plug in connector.

Title Type Size
Data sheet application/pdf 541 KB
