Analog to Resistance BATR167

The BATR167 can convert most process signals into a simulated resistance output along with 3-way galvanic isolation up to 2000V rms between input signal, resistance output and power supply.

Description

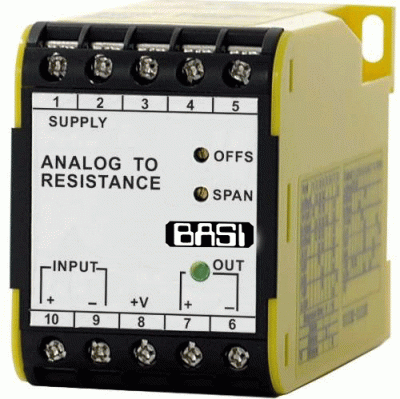

The BATR167 can convert most process signals into a simulated resistance output along with 3-way galvanic isolation up to 2000V rms between input signal, resistance output and power supply. The conversion technique is analogue thus providing infinite resolution. Typical application include:

Convert a thermocouple to RTD signal to match dissimilar exisiting equipment

Automatic gain control

The output signal level is indicated by a green LED on the front of the module, giving a clear indication of module function, signal presence and loop condition for current outputs. Various power supply choices are available ranging from 240Vac down to 8Vdc. All provide power isolation and surge protection.

Title Type Size
Data sheet application/pdf 476 KB
