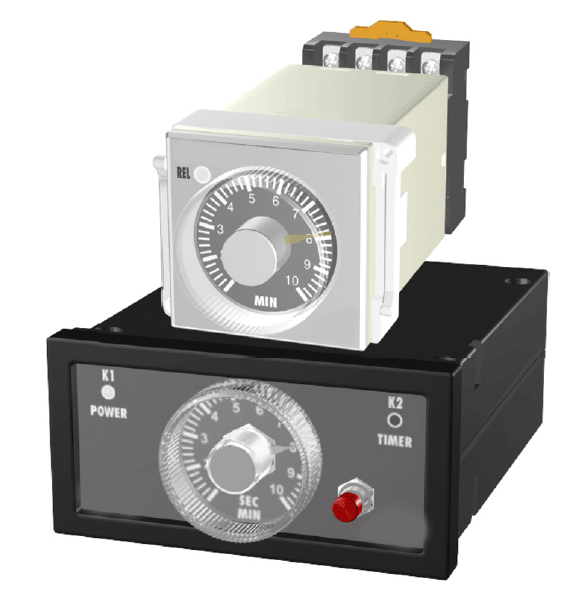

The BAT02 timer is designed for time sequence control of electrical actuators. The time setting adjustment is done by rotating a dial on the front panel and the timing is started at power-on or by external ‘start/stop’ contact. Various modes of operation – on-delay, off-delay, pulse output, and cyclical output – are available. The operating modes as well as the time range (for variant ‘S’) can be selected via micro switches. The timer may be equipped with up to 2 relays – main timing relay and auxiliary relay, which is activated at power-on or simultaneously with the main relay. BAT02 has no indication, is very easy to set and operate, and yet has all the main functions of a modern electronic timer.
