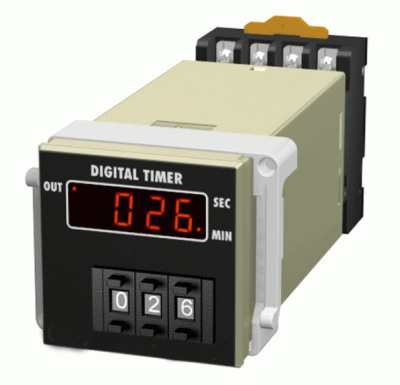

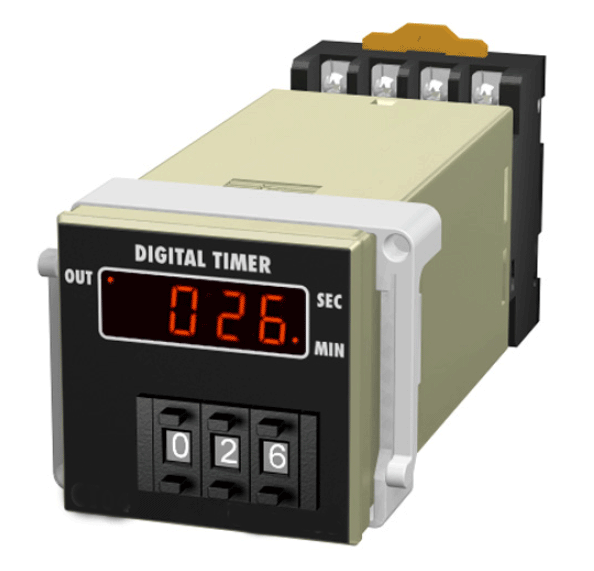

Timer BAT04

With its 48×48 mm DIN-sized front panel, the BAT04 timer is especially suitable for building in machines and installations where compact size is important.

Categories: ,

Description

With its 48×48 mm DIN-sized front panel, the BAT04 timer is especially suitable for building in machines and installations where compact size is important. A 4-digit LED display indicates the current time, and the delay is set by push-on wheels (BCD coders), which greatly simplifies the setting and improves accuracy. Equipped with 2 relay outputs – main and auxiliary relay – BAT04 can be used for timing control (switching on and off) of various electrical actuators. The main relay is time operated, and the auxiliary relay is activated at power-on or simultaneously with the main relay. In spite of its simple design and low price, BAT04 has all main functions of a modern electronic timer and can be widely used in industry and consumer goods

Title Type Size
Data sheet application/pdf 114 KB
