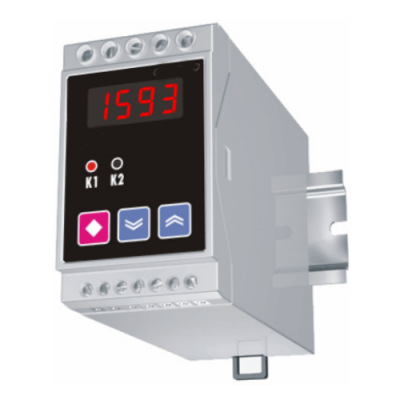

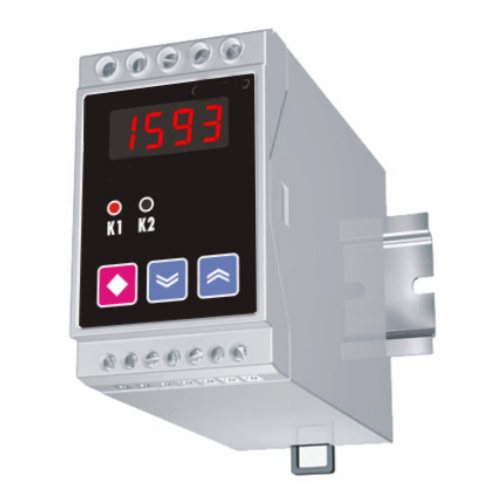

PID Controller BTC706

BTC706-R is a multifunctional programmable controller with universal input for the most common thermoresistances, thermocouples, and linear signals, especially designed for rail mounting.

Description

BTC706-R is a multifunctional programmable controller with universal input for the most common thermoresistances, thermocouples, and linear signals, especially designed for rail mounting. The input has a built-in automatic software compensation of line resistance and cold junction temperature as well as automatic software compensation of temperature drift, and can be calibrated manually. BTC706-R is also equipped with a programmable input filter and a 4-digit display with programmable refresh rate. Available are various options for access restriction. The device can have up to 2 outputs (2 relays or 1 relay and 1 analog output), which can control variety of actuators through different programmable control algorithms. BTC706-R can work in manualor automatic mode, and an RS485 serial interface enables networki

Title Type Size
Data sheet application/pdf 104 KB
