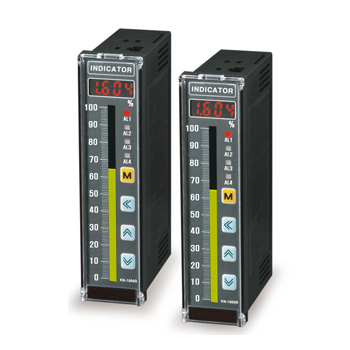

Bar Graph Indicator BKN1000

Compact digital/bar graph indicators BKN1000 offer high accuracy of ±0.2% and dual display (digital/bar graph) in a compact form factor. The indicators are capable of processing multiple input types, and feature various functions including high/low peak monitoring, sensor disconnection alarm, input correction, and much more.


High accuracy with 16-bit ADC (±0.2% F.S.)
Multiple input types
: thermocouple (12 types), RTD (5 types), analog (6 types: mV, V, mA)
Bar graph with 101 LEDs (green), 4-digit LED display (red)
Various output options
: alarm output (2 or 4), 4-20 mA transmission output (isolated), RS485 communication output
Various functions
: high/low peak monitoring, sensor disconnection alarm output (burn-out), input correction, digital input (DI), set user input range, display scale, transmission output scale, bar graph alarm display, etc.
Built-in power supply for sensors (24 VDC)
Compact size (rear length: 70 mm)

For a product specification, please contact
