Field Indicator BDI118/1186

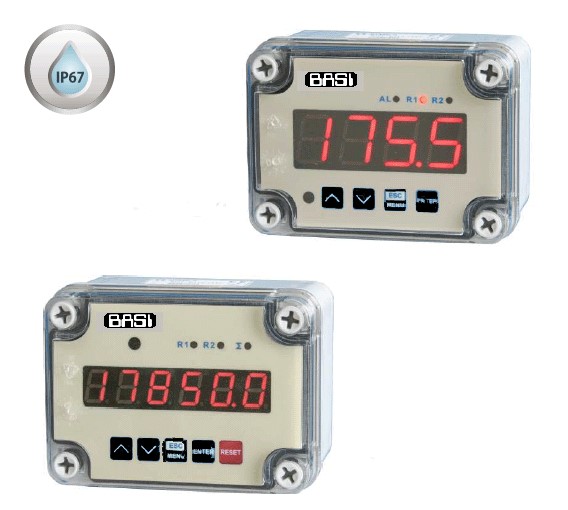

Meter in tight (IP 67), wall mounting case, with current-voltage input, 2 relay (or OC type) outputs and 1 analogue output, according to the customer selection: active current output, passive isolated current output or active voltage output. The meter may be configured with no need to open the case, by using the remote controller or with free Config software via the RS-485 communication port.

Description

Meter in tight (IP 67), wall mounting case, with current-voltage input, 2 relay (or OC type) outputs and 1 analogue output, according to the customer selection: active current output, passive isolated current output or active voltage output. The meter may be configured with no need to open the case, by using the remote controller or with free Config software via the RS-485 communication port. The device operates in the following modes: linear, root, square and user defined (max. 20 points).

Parameters

Inputs current 0-20 mA or 4-20 mA, programmable, input resistance < 65 Ohm (typ. 55 Ohm), overload-protected, input current limited to 40 mA; voltage 0-5 V, 1-5V, 0-10V or 2-10V, programmable, input resistance > 50 kOhm
Power consumption for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 5 VA; for 19V ÷ 50V DC power supply: max. 5 W
Outputs 0 or 2 relays 1A/250V AC (cos fi=1) or the OC 30mA/30VDC/100mW; transducer power supply output: 24V DC +5%, -10% / max. 100 mA, stabilized
Case material ABS + polycarbonate (standard); 100% polycarbonate (on request)
Protection class IP 67
Display LED, red (green on request), 4 x 20 mm or 6 x 13 mm high, brightness adjustable in 8 steps
Operating temperature 0°C ÷ +50°C (standard); -20°C ÷ +50°C (option)
Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC, all separated
Measurement range -999 ÷ 9999 (SRP-N118) or -99999 ÷ 999999 (SRP-N1186) + decimal point
Accuracy 0.1% @25°C ± one digit
Analogue outputs (available with 2 x REL or OC, see ordering): active current: operating range 0/4-20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit passive current: isolated, operating range 4-20 mA (max. 2,8-24 mA), load resistance 600 Ω@24VDC, resolution 13 bit; active voltage: operating range 0/1-5V, 0/2-10V (max. 0-11V), load resistance min. 2000 Ω, resolution 13 bit
Stability typ. 50 ppm/°C
Communication interface RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated from measuring inputs)
Storage temperature -10°C ÷ +70°C; -20°C do +70°C (depending on version)
Case dimensions without glands: 110 x 80 x 67 mm; with glands: 110 x 105 x 67 mm
Weight 350 g
Case wall-mounted
