Description
Programmable Process Indicator
♦ Large LED display up to 32 mm high
♦ Universal input for 4 RTDs, 6 T/Cs, and 3 linear types
♦ 2 alarm relay outputs
♦ Software input line and ‘cold junction’ correction
♦ Self-testing and self-calibration
♦ RS485 serial interface available

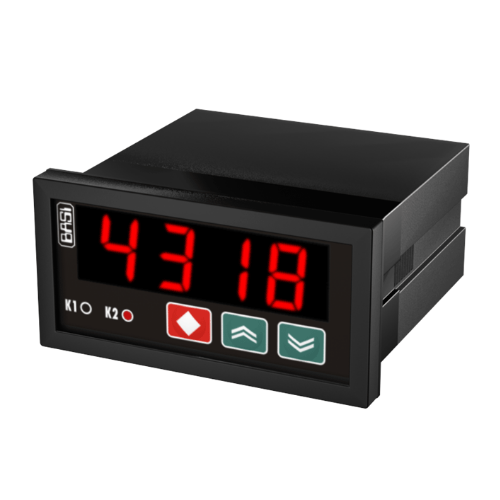

BASI’s Intelligent Digital Universal Display Indicator BDI67U, has input for temperature sensors (thermocouples, Pt100, Pt1000, PTC) and analog signals such as V, and mA. Other advantages like input filters for the suppression of disturbing signals, sensor compensation are standard. Supplementary modules for 1 or 2 relay outputs and RS485 serial communication. The indicator is self-diagnostic and pre-programmable. The power supply voltage is optionally 90 to 250VAC / DC or 12 to 24VAC / DC. The indicator is for panel mounting to standard DIN 96 x 48 or 144 x 72mm. The BDI67 has 20, 32 or 45 mm high numbers and can be read at a long distance.
