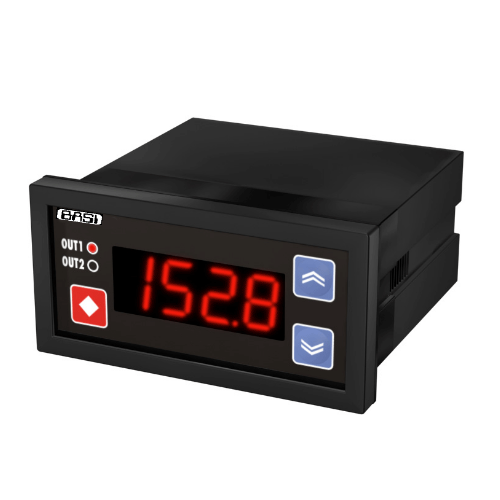

Digital Indicator BDI08

BDI08 is a economical programmable process indicator available in 5 DIN cases and designed for wide range of display applications with/without relay alarm.

Description

Economical Process Indicator
♦ Lowest cost
♦ 6 DIN cases – up to 1/32 DIN
♦ 4-digit bright LED indication
♦ Universal linear input
♦ Up to 2 alarm relays available with pulsed output
♦ Fully programmable parameters

BDI08 is a cheap programmable process indicator available in 5 DIN cases and designed for wide range of display applications with/without relay alarm. Equipped with a bright 4-digit LED display, this model is especially suitable for measuring and controlling various technological values from -1999 to 9999 with resolution of up to 6000 points. The device may be equipped with up to 2 programmable relays providing on/off control/alarm with or without pulse mode. BDI08 accepts various linear input voltage or current signals. The display limits, decimal point position, measurement offset value as well as many other parameters are fully programmable. Thanks to its excellent price-to-performance ratio, BDI08 is an exceptionally widely applicable device

Title Type Size
Data Sheet application/pdf 59 KB
