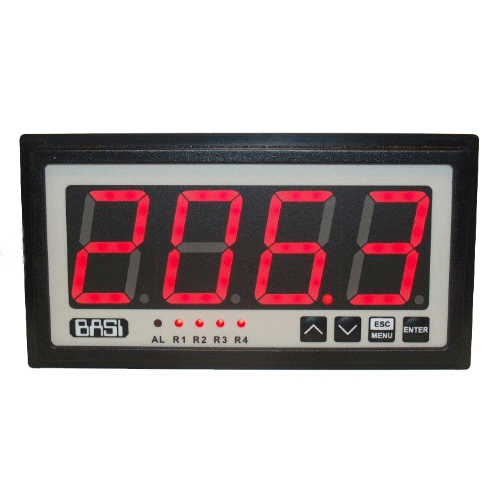

Digital Indicator BDI147

The BASI programmable process indicator BDI147 is designed for wide range of control applications.

Description

The BASI programmable process indicator BDI147 meter with large display (digits 38 mm), with current-voltage or mV input, with 2 or 4 relay (or OC type) outputs and 1 analogue output, according to the customer selection: active current output, passive isolated current output or active voltage output. The meter can be configured with the local keyboard or free -Config software via the RS-485 communication port.

Parameters

Inputs current 0-20 mA or 4-20 mA, programmable, input resistance < 65 Ohm (typ. 55 Ohm), overload-protected, input current limited to 40 mA; voltage 0-5 V, 1-5V, 0-10V or 2-10V, programmable, input resistance > 50 kOhm
Power consumption for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA; 19V ÷ 50V DC power supply: max. 4,5 W
Outputs 0, 2 or 4 relays 1A/250V AC (cos fi=1) or the OC 30mA/30VDC/100mW; transducer power supply output: 24V DC +5%, -10% / max. 100 mA, stabilized, not insulated from measuring inputs
Case material NORYL- GFN2S E1
Protection class IP 65 (front), available additional frame IP 65 for panel cut-out sealing; IP 20 (case and connection clips)
Display LED, red (green on request), 4 x 38 mm high
Operating temperature 0°C ÷ +50°C (standard), -20°C ÷ +50°C (option)
Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Measurement range -999 ÷ 9999 + decimal point
Accuracy ± 0,25% ± one digit in the entire operation range
Analogue outputs (available with 2 x REL or OC, see ordering): active current: operating range 0/4-20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit passive current: isolated, operating range 4-20 mA (max. 2,8-24 mA), load resistance 600 Ω@24VDC, resolution 13 bit; active voltage: operating range 0/1-5V, 0/2-10V (max. 0-11V), load resistance min. 2000 Ω, resolution 13 bit
Communication interface RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated from measuring inputs)
Stability typ. 50 ppm/°C
Storage temperature -10°C ÷ +70°C or -20°C ÷ +70°C (with option 08)
Case dimensions 144 x 72 x 100 mm
Case panel mounting
Panel cut-out dimensions 138,5 x 67 mm
Installation depth min. 102 mm
