Field Indicator BLD510

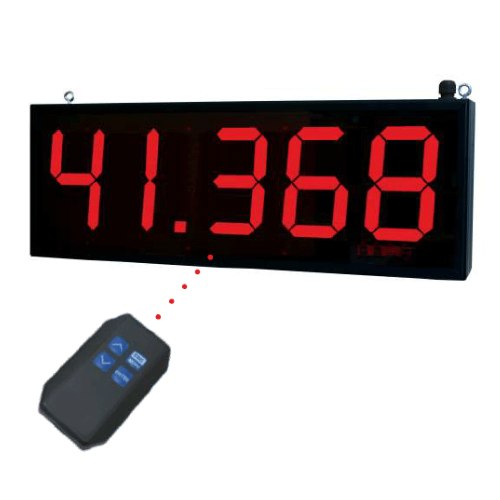

The BLD-W510 is a simple digital panel indicator  5 digits and 100mm hight intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link.

Description

BCD / RS-485

The transmission of analogue signals may involve the inclusion of some errors when measurements are transmitted to other appliances, for example. For this reason, we have supplemented our range with equipment using digital transmission formats. This method enables the connection of large-size meters that can display identical values as those fitted to a control unit. The software developed for these RS-type meters enables their use as general-purpose meters for any digital quantities (including mnemonic messages). Such meters, when combined into complex networks using the ModBus system, can display information transmitted from the master PC of the PLC controller.

The BLD-W510 is a simple digital panel indicator  5 digits and 100mm hight intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link. The display brightness can be adjusted in 8 steps. The device has 4 buttons being used for main presets programming. To get high protection level, the keyboard is mounted under transparent cover. To allow user to change presets without opening the cover, an IR sensor is mounted. Remote controller keyboard is equivalent to the device keyboard (Note, that remote controller SIR-15 is not a part of the set. It is an additional equipment). Modbus RTU protocol is used to communication with device. The t is user defined in 1200 ÷ 115200 baud range. It is possible to order device with other communication protocol using RS-485 interface (special order required).

Parameters

Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Power consumption for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 11 VA; for 19V ÷ 50V DC power supply: max. 8 W
Additional supply 24V DC + 5%, – 10% / max 100 mA, stabilized
Case material aluminium + methyl polimethacrylate
Protection class IP 30
Operating temperature 0°C ÷ +50°C (standard), -20°C ÷ +50°C (option)
Display LED, red, 5 x 100 mm, with 8-step adjustment of brighness
Communication interface RS-485 (Modbus RTU), not galvanically isolated
Displayed values range 5 digits (-9999 ÷ 99999 plus decimal point) or any of character indication in range of 7-segments display
Transmission parameters 1200 ÷ 115200 bit/s; 8N1 and 8N2
Storage temperature -10°C ÷ +70°C, -20°C ÷ +70°C (with option 08)
Case wall-mounted
Case dimensions 578 x 208 x 102 mm
Title Type Size
Data sheet application/pdf 797 KB
