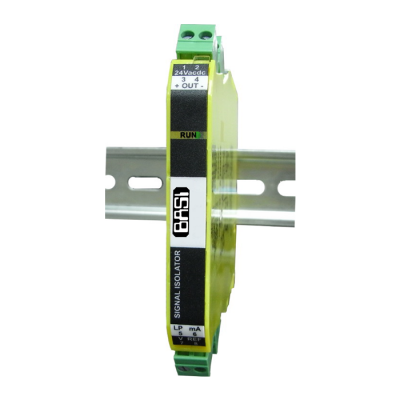

Signal Isolator BSL332

Description

The BSL332 is a field configurable isolating converter providing true 3-way galvanic isolation up to 2500Vrms for standard process signals.

Input and output range are set using two 16 position encoder switches that are accessed under a door flap mounted on the front of the module. This results in 150 fully calibrated input / output combinations that can be changed at any time without test equipment.

The key features of the BSL332 are;

  • Smaller case style.
  • Has a wide range ac/dc power supply (10-60Vdc / 16-48Vac 50/60Hz), 80-300Vdc / 80-280Vac 50/60Hz).
  • Capable of changing ranges and settings without using test equipment or opening the case.



Title Type Size
Data Sheet application/pdf 585 KB
Programmer User Guide

BLS300

application/pdf 12 MB
