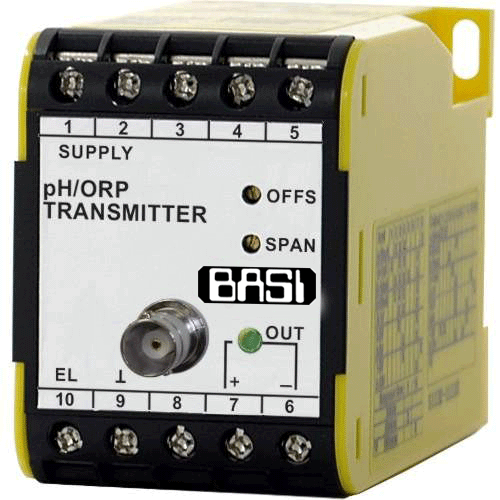

pH/ORP-Transmitter BPHT129

The BPHT129 is used with a wide range of ELECTRO CHEMICAL sensors such as pH, ORP (Oxidation-Reduction Potential).

Description

The BPHT129 is used with a wide range of ELECTRO CHEMICAL sensors such as pH, ORP (Oxidation-Reduction Potential). Input/output isolation is now standard to avoid ground loop problems. As the electro chemical probe input impedance is greater than 1012Ω it is important that shielded cable is used. A separate optional input allows connection of a Pt100 temperature sensor for automatic temperature compensation. Final calibration is trimmed using the front accessible ‘offs’ and ‘span’ 15-turn trim adjustments. Special requirements for input/output response time variation can be accommodated by optional “customised response”. The output signal level is indicated by a green LED on front of the module, giving a clear indication of module function, signal presence and loop condition for current outputs. Reverse or direct action are factory configured. Various power supply choices are available ranging from 240Vac down to 8Vdc all featuring dual outputs for power isolation. Surge protection for power supply and input is standard with all BASI modules.

Title Type Size
Data sheet application/pdf 628 KB
