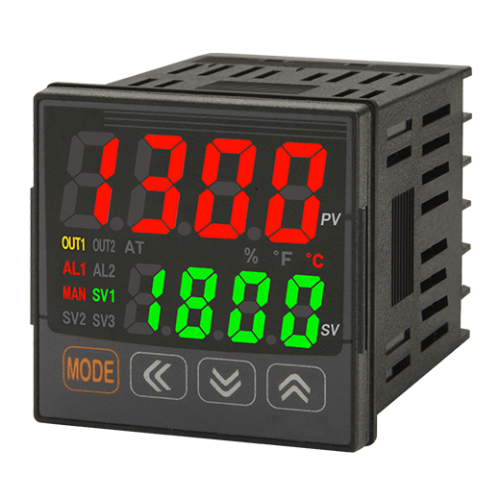

PID-Controller BTK

The BTK series high accuracy type standard PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control in any required application.


※ New line-up: AC/DC low voltage type
* 50 ms high-speed sampling rate and ±0.3% display accuracy
* Simultaneous heating and cooling control function
* Automatic/manual control option
* Switch between current output and SSR drive output
* SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control
* Communication output models available : RS485 (Modbus RTU)
* Parameter configuration via PC (RS485 communication)
– DAQMaster software included (comprehensive device management software)
– Communication converter sold separately: SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
* User-friendly parameter features (via DAQMaster)
* SV preset function (up to 4 set values) using digital input terminals
* Heater disconnect alarm function (CT input)
– Current transformer (CT) sold separately: CSTC-E80LN, CSTC-E200LN
* Various input types and temperature ranges
* Various DIN sizes: (48 x 24, 48 x 48, 72 x 72, 96 x 48, 48 x 96, 96 x 96 mm)
