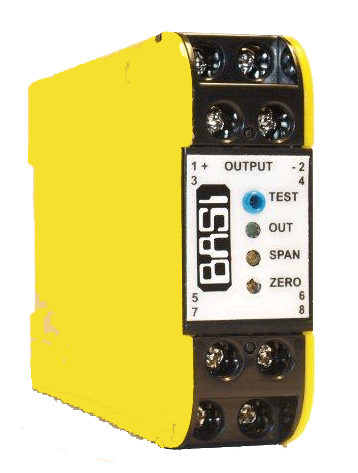

Signal Isolator BSI236

The BSI236 is an isolating converter providing true 3-way galvanic isolation up to 2kV rms

Description

The BSI236 is an isolating converter providing true 3-way galvanic isolation up to 2kV rms. The BSI236 produces an isolated unipolar output signal from an input signal. The BSI236 comes in three, coding plug selectable models to accept either: Process, mV or Bipolar input signals. No special tools or components are required for range changing in the field. A 20Vdc/22mA sensor supply is available at the input section, this can be useful for loop powered field transmitters. Final calibration is trimmed using the front accessible zero and span 15-turn trim adjustments. Maximum current drive is 20mA and maximum voltage drive is 20V. The wide swing DC-power supply (8-60V) covers all popular DC sources. All units are fitted with a 500mS filter that can be link changed to 5mS for fast response. Surge protection for power supply and input is standard with all BASI modules

Title Type Size
Data sheet application/pdf 468 KB

Signal Isolator BSI236
