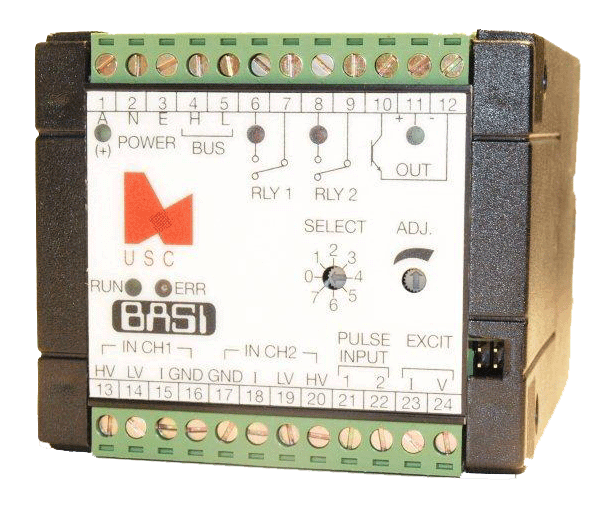

Universal Signal Conditioner BUSC701

The USC701 is an universal signal conditioner that combines measurement and control functions in a single instrument to provide user selectable solutions for most signal conditioning applications.

Description

The USC701 is an universal signal conditioner that combines measurement and control functions in a single instrument to provide user selectable solutions for most signal conditioning applications. The USC701 can be programmed directly using the Access Module or a personal computer. The user can also adjust basic calibration functions such as:- zero, span and trip point via a function switch and digital encoder accessible on the lid. The USC701 has a comprehensive range of user selectable hardware options. These include dual analogue inputs, dual digital inputs, current or voltage retransmission, sensor supply and isolated trip relays. The USC701 provides a substantial range of software functionality. These include maximum demand control, dual input functions with A*B, A/B, A+B, A-B, largest of A and B, average of A and B, 100 point linearise, PID control, speed measurement, digital filter options

Title Type Size
Data sheet application/pdf 121 KB
