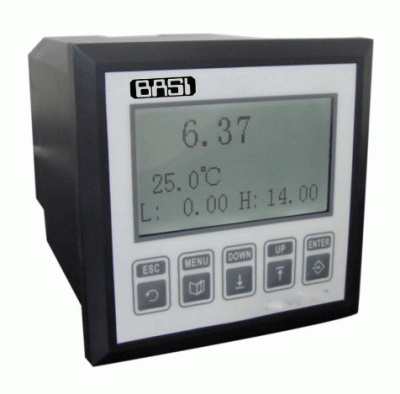

Conductivity Transmitter BCOT102

BCOT102 Conductivity Controller Using high-performance CPU chip and AD conversion technology. Multi-parameter measurement, temperature compensation.  Automatic conversion measurement frequency avoid electrode polarization.  Phase sensitive detection design Eliminate the influence of the wire on the measurement. Industrial Controlled Watchdog: Make sure the meter does not crash.. RS485 communication interface (optional) Isolated current output

Categories: ,

Description

New Conductivity Series
BCOT102 Conductivity Controller

Using high-performance CPU chip and AD conversion technology
Multi-parameter measurement, temperature compensation
Automatic conversion measurement frequency avoid electrode polarization
Phase sensitive detection design Eliminate the influence of the wire on the measurement.
Industrial Controlled Watchdog: Make sure the meter does not crash.
RS485 communication interface (optional)
Isolated current output

Technical parameters
BCOT102 Analyzer parameters

Power supply: AC220V, 50Hz±1Hz .
Range: × (0 ~ 20000) μS / cm, 0 ~ 80℃
Measurement: 0.01 ~ 20μS / cm (with 0.01 ; 0.1 ~ 200μS / cm (with 0.1 electrode); 1.0~2000μS/cm (with 1.0 electrode); 10~20000μS/cm (with 10.0 electrode);
Display: Large screen LCD display ( English)
Display: Conductivity, temperature, proportion of 4~20mA output.
Temperature compensation: Automatic. 0~80℃, Manual 0 ~ 80℃, 25℃ conversion
Accuracy: ±0.5%F.S. ±0.3℃Resolution 0.001μS/cm 0.1℃
Galvanic isolation output: 4~20mA (load < 750 Ω)
Alarm relay: AC220V, 3A, alarm signal isolation
Communication: interface Isolated RS485 (optional)
Working conditions: Ambient temperature 0~60℃, relative humidity ≤90℅
Power down: save >10years
Protection level: IP65
Application areas: sewage treatment, power generation, aquaculture, schools, pharmaceutical plants, hospitals, fermentation, chemicals, tap water, etc.

Title Type Size
Data sheet application/pdf 90 KB
Manual application/pdf 632 KB
