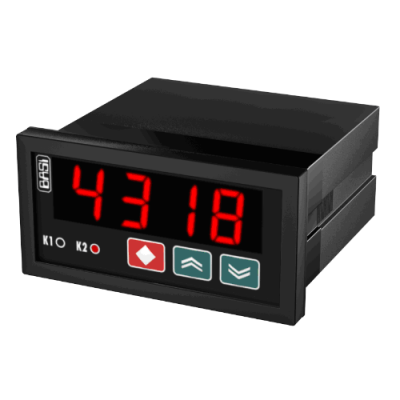

Digital Indicator BDI67

BDI67 is designed for wide range of control applications


Programmable Process Indicator
♦ Large LED display 20 mm high
♦ Universal input for 4 RTDs, 6 T/Cs, and 3 linear types
♦ 2 alarm relay outputs
♦ Software input line and ‘cold junction’ correction
♦ Self-testing and self-calibration
♦ RS485 serial interface available

BDI67 is designed for wide range of control applications. It is equipped with a large LED display and 2 programmable relay alarm outputs. BDI67 has a universal input accepting signals from Pt100, Pt1000, PTC, 6 thermocouple types as well as linear current and voltage signals from external transmitters. This device also has a built-in circuit for self-testing and self-calibration, manual measurement offset setting, and automatic software compensation of line resistance and cold junction temperature. The display-to-input correspondence (in case of linear input), decimal point position, temperature measurement unit, and offset value are also programmable through the convenient keyboard. Thanks to its large display, universal input, serial interface, and excellent price-to-performance ratio, BDI67 is exceptionally widely applicable device.

Title Type Size
Data Sheet application/pdf 106 KB
